D525-54-HL

Cable Drum High Lift 54" D525-54HL Torque Force Pair

  • Maximum hi-lift: 54"
  • Capacity: 500 lbs per drum
  • Max. cable size: 3/16"
  • Cable length: Floor to shaft center 66" minus amount of Hi-Lift
  • Cross reference: DNS 54 OMI 54HL M134-1375
D400-144-1

Cable Drum Standard Lift 12' Torque Force Pair

  • 12 ft Standard lift cable drum. Aluminum die cast alloy.
  • Max. door height: 12'-1".
  • Rated lift per drum: 375 lbs.
  • Max. cable diameter: 5/32".
  • Mounting: 1" tube or solid shaft with 1/4" keyway.
  • Cross references: DM413 DNS 4-13 OMI 2100.
  • .......more details
DM4X8

Cable Drum Standard Lift 8' 400-8 Pair

  • 8' Standard Lift aluminum die cast alloy.
  • Pair includes: (1) LH and (1) RH Color coded: Red=LH and Black=RH
  • Max. Door Height: 8'-1".
  • Rated Lift per Drum: 265 lbs
  • Max. Cable Diameter: 1/8"
  • Mounting: 1" tube or solid shaft with 1/4" keyway
  • .......more details
DM518

Cable Drum Standard Lift 18' 5250-18 Pair

  • 18' standard Lift aluminum die cast alloy.
  • Pair includes: (1) LH and (1) RH.
  • Color coded: Red=LH and Black=RH
  • Max. Door Height: 18'-1" Rated Lift per Drum: 750 lbs.
  • Max. Cable Diameter: 3/16". Mounting: 1" solid shaft with 1/4" keyway
  • Cross Reference: D525-216-1 DNS 5-18 OMI 2200
  • .......more details
DM11VL

Cable Drum Vertical Lift 11' 850-11 Pair

  • 11' Vertical Lift aluminum die cast alloy.
  • 3/8"-16 x2" hardened cup point set screws installed with red heads.
  • Color coded: Red=LH and Black=RH. Pair includes (1) LH and (1) RH. Max. Door Height: 11'-1".
  • Rated Lift per Drum: 425 lbs.
  • Max. Cable Diameter: 3/16".
  • Mounting: 1" solid shaft with 1/4" keyway.
  • .......more details
DM120-T/FORCE

Cable Drum High Lift 120" D575-120-1 Pair Torque Force

  • 120" High Lift aluminum die cast alloy cable drums.
  • 3/8"-16 x 2" hardened cup point set screws installed with red heads.
  • Pair includes: (1) LH and (1) RH. Color coded: Red=LH and Black=RH.
  • Maximum high lift: 120".
  • Maximum door height: 144" + High Lift.
  • Rated lift per drum: 500 lbs.
  • .......more details

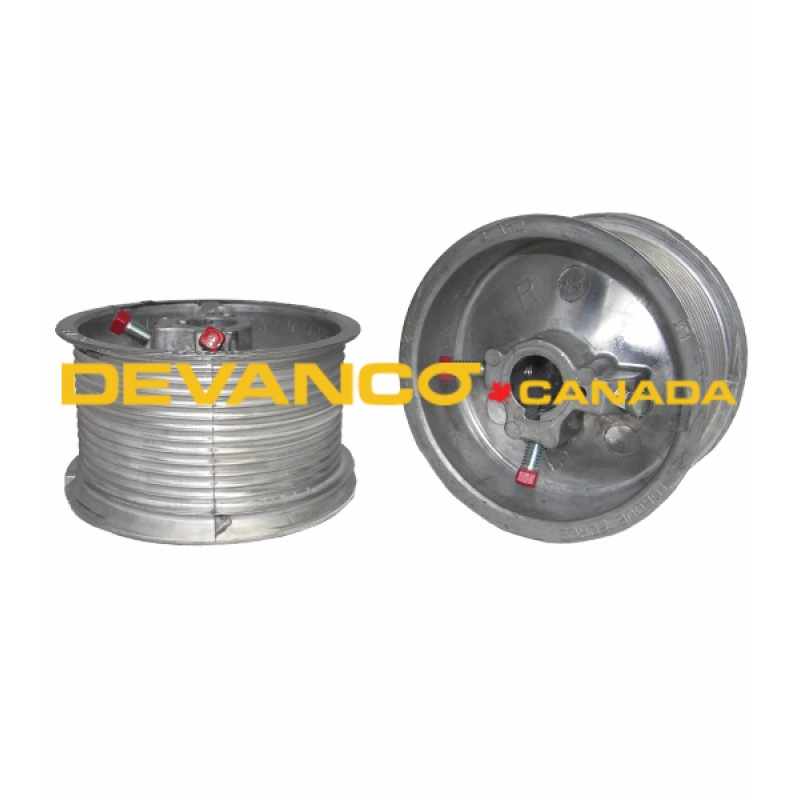

D525-216-1

Cable Drum Standard Lift 18' 3-SS Torque Force Pair

  • 18' standard Lift aluminum die cast alloy with 3 set screws.
  • Pair includes: (1) LH and (1) RH.
  • Color coded: Red=LH and Black=RH
  • Max. Door Height: 18'-1" Rated Lift per Drum: 750 lbs.
  • Max. Cable Diameter: 3/16". Mounting: 1" solid shaft with 1/4" keyway
  • Cross Reference: DM518 DNS 5-18 OMI 2200
  • .......more details
DM54LC

Cable Drum High Lift 54" 400-54HL Pair

  • 54" LC High Lift-LD Aluminum die cast alloy.
  • 3/8"-16x2" hardened cup point set screws installed with red heads.
  • Color coded: Red-LH and Black=RH. Maximum High Lift: 54"
  • Maximum Door Height: 120" + High Lift
  • Rated lift per drum: 275 lbs 550 lb per door max
  • Maximum cable diameter: 5/32" max
  • .......more details
D6375-164

Cable Drum High Lift 164" 1" Bore Torque Force Pair

  • Maximum hi-lift: 164"
  • Capacity: 800 lbs per drum
  • Cable length: Floor to shaft center 181" minus amount of Hi-Lift
  • Cross reference: DNS 410-164 OMI 164HL M162-4165
DM413

Cable Drum Standard Lift 12' 400-12 Pair

  • 12 ft Standard lift cable drum. Aluminum die cast alloy.
  • Max. door height: 12'-1".
  • Rated lift per drum: 375 lbs.
  • Max. cable diameter: 5/32".
  • Mounting: 1" tube or solid shaft with 1/4" keyway.
  • Cross references: D400-144 DNS 4-13 OMI 2100. 3/8"-16 x 2" hardened cup point set screws installed with red heads. Color coded (red=LH black=RH)
  • .......more details
DM518-125

Cable Drum Standard Lift 18' D525-216-125 Pair Torque Force

  • 18' standard Lift aluminum die cast alloy.
  • Pair includes: (1) LH and (1) RH.
  • Color coded: Red=LH and Black=RH
  • Max. Door Height: 18'-1" Rated Lift per Drum: 750 lbs.
  • Max. Cable Diameter: 3/16".
  • Mounting: 1-1/4" solid shaft with 1/4" keyway
  • .......more details
DM54

Cable Drum High Lift 54" 5250-54 Pair

  • 54" High Lift aluminum die cast alloy.
  • 3/8"-16x2" hardened cup point set screws installed with red heads.
  • Color coded: Red-LH and Black=RH.
  • Maximum High Lift: 54" Maximum Door Height: 180" + High Lift
  • Rated lift per drum: 500 lbs 1000 lbs per door max
  • Maximum cable diameter: 3/16"
  • .......more details
DM120-125-T/FORCE

Cable Drum High Lift 120" D575-120-1-1/4" Pair Torque Force

  • 120" High Lift aluminum die cast alloy cable drums.
  • 3/8"-16 x 2" hardened cup point set screws installed with red heads.
  • Pair includes: (1) LH and (1) RH. Color coded: Red=LH and Black=RH.
  • Maximum high lift: 120".
  • Maximum door height: 144" + High Lift.
  • Rated lift per drum: 500 lbs.
  • .......more details
DM11VL-T/FORCE

Cable Drum Vertical Lift 11' D850-132 Pair Torque Force

  • 11' Vertical Lift aluminum die cast alloy.
  • 3/8"-16 x2" hardened cup point set screws installed with red heads.
  • Color coded: Red=LH and Black=RH. Pair includes (1) LH and (1) RH. Max. Door Height: 11'-1".
  • Rated Lift per Drum: 425 lbs.
  • Max. Cable Diameter: 3/16".
  • Mounting: 1" solid shaft with 1/4" keyway.
  • .......more details
DM32-125

Cable Drum Standard Lift 32' 800-32 (1-1/4") Pair Torque Force

  • 32 ft Standard lift aluminum die cast alloy cable drums for 1-1/4" shaft.
  • Pair includes (1) LH & (1) RH. Color coded: Red=LH and Black=RH.
  • 3/8"-16 x 2" hardened cup point set screws installed with red heads.
  • Maximum Door Height: 32'-1".
  • Rated Lift per Drum: 1000 lbs.
  • Max Cable Diameter: 1/4".
  • .......more details
D800-120-125

Cable Drum High Lift 800-120 1-1/4" HL Pair

  • Adjustable cable attachment with screw
  • Made of aluminum
  • High Lift capacity: 120" max
  • Flat capacity: 266" max
  • Rating: 2200 lb per door max
  • Keyway: 1 KW of 1/4" width
  • .......more details
DM32

Cable Drum Standard Lift 32' 800-32 Pair

  • 32' Standard Lift aluminum die cast alloy for a 1" solid shaft. Pair includes: (1) LH and (1) RH. Color coded: Red=LH and Black=RH
  • Max. Door Height: 32'-1".
  • Rated Lift per Drum: 1000 lbs
  • Max. Cable Diameter: 1/4".
  • Mounting: 1" solid shaft with 1/4" keyway
  • Cross Reference: D800-384 DNS 402-32 OMI 2300
  • .......more details
DM54LC-COATED

Special ends 2023-07-31

Cable Drum High Lift 54" 400-54HL Specialty Coated Pair

  • Use for Commercial Highlift Doors
  • Maximum Door Height 120" + Highlift
  • Maximum Highlift 54"
  • Lifting Weight Per Drum 275 lbs.
  • Resists Chemical/Moisture Corrosion
  • Abrasion Resistant
  • .......more details
DM518-COATED

Special ends 2023-07-31

Cable Drum Specialty Coated Standard Lift 18' 5250-18 Pair

  • 18' standard lift with special protective coating.
  • Features bimetallic corrosion protection
  • 1000 hr. salt spray performance
  • Abrasion resistant chrome free excellent corrosion protection
  • Pair includes: (1) LH and (1) RH.
  • Color coded: Red=LH and Black=RH
  • .......more details
DM18VL-T/FORCE

Cable Drum Vertical Lift 18' D1100-216-1 Pair Torque Force

  • 18' Vertical Lift aluminum die cast alloy cable drums.
  • 3/8"-16 x2" hardened cup point set screws installed with red heads.
  • Color coded: Red=LH and Black=RH. Pair includes (1) LH and (1) RH.
  • Max. Door Height: 18'-1".
  • Rated Lift per Drum: 660 lbs.
  • Max. Cable Diameter: 3/16".
  • .......more details
