Standard transmitter included with all GTO gate operators
Much smaller in size than previous model and improved signal range
The single button controls the gate operator and has adjustable code settings and has (new miniature) visor clip for your vehicle and now a whole for key-ring or key chain.
It is compatible with GTO and Mighty Mule gate operators
The code settings are the 9 dipswitches located inside the cover.
The keypad is housed in a rugged plastic enclosure and is designed to be mounted in a standard single-gang electrical box. The die-cast keys have bright easy-to-read yellow graphics.
It is supplied with four different plastic snap-on mounting bezels to customize the look of the keypad. The satin-chrome bezel comes factory installed on the keypad. The white ivory & bronze bezels are packaged separately.
Up to 480 entry codes from 1 to 6 digits in length can be programmed. They can activate either or both of the relay outputs.
Relay #1 has a 5 Amp capacity. Relay #2 has a 1 Amp capacity. The relays can be set for timed or latch-on/latch-off toggle operation per each individual entry code.
The on or off toggle state of a relay is maintained even after power interruption. When power is restored to the keypad each relay will assume the state it was in when power was removed.

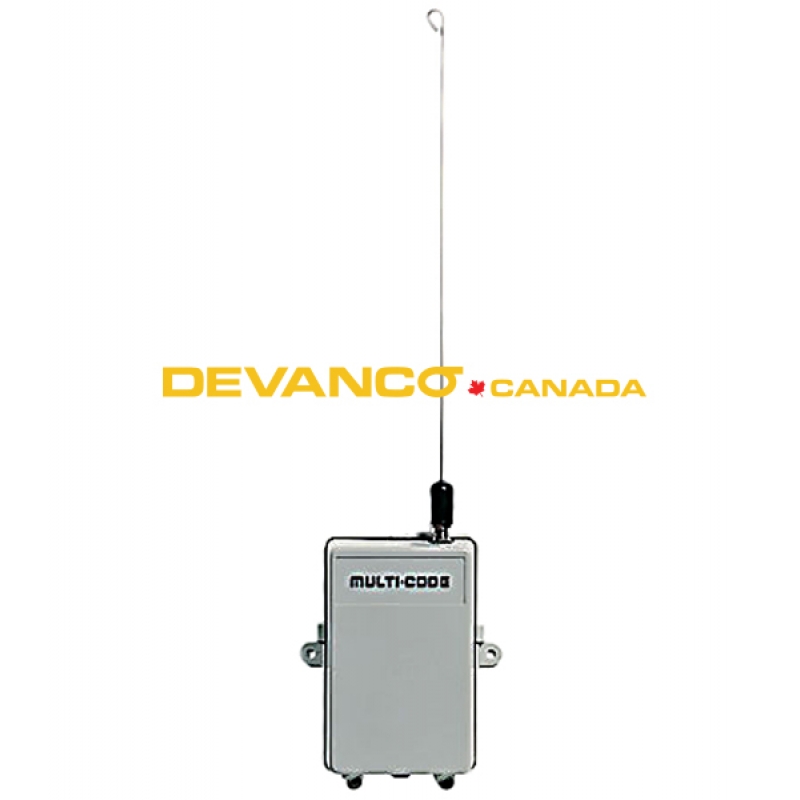

Designed for use as an access control interface for Linear’s block coded digital transmitters.
The unit receives signals from transmitters adds a facility code to the data and sends the information to the Wiegand input of the access control panel via a 5-wire connection
Ideal way to facilitate handicapped access
Multi-button transmitters can double as personal emergency devices for triggering security alarms
RF input/Wiegand output receiver supports 26 30 and 31-bit data formats
Wide selection of MegaCode (over 1 million codes) format transmitters with available block coding
