Home Commercial Door & Gate Operator Parts Circuit Boards
K001D8072-1

LiftMaster Single Phase Relay/Power Board (K001D8396-1)

  • For Logic 5 commercial operators
  • Same as K001D8396-1
  • 014D1276E
LYNX-6000-BOARD

Lynx 6000 Commercial Logic Board

  • Replacement logic board for Lynx commercial operators built from 2002 through 2005
  • Will not work for the ALDJ Model (Light Duty) •
Basic Operation Manual
AUXREL

LiftMaster Auxiliary Relay Board MAXUM

  • For use with various LiftMaster® Logic 4.0/5.0 and MAXUM DC Standard-Duty and Industrial-Duty Commercial Door Operators
Configuration
37520

Doorlec DC-2000 Electronic Circuit Board UL325 Requires Monitored Photocells (MUST incl. resistor) ___

  • Works in all Doorlec model openers except R-99
  • Input power to board is 120V
  • 24V DC available on terminals 9 & 11
  • Accessory power on terminals 1 & 11
  • 1 = Stop. 2 = Com. 3 = Open 4 = Close
  • Can be adjusted for constant pressure
    • .......more details
Wiring Diagram
K41-0072-000

LiftMaster Relay Adapter Board HD

  • Compatible with the following models: INSL24UL INSL24ULMC
K1D8389-1CCU

LiftMaster Upgrade Kit with Eyes DC Pad Mount for UL325

  • Upgrade Kit for models CSW24V CSW24VH CSW24VDC CSL24V CSL24VH and CSL24VDC UL325 Approved Gate Operators; manufactured 2012 to 2015.
  • Complete kit includes: Main Control Board Expansion Board LiftMaster® Monitored Retro-Reflective Photoelectric Sensor Kit UL Upgrade label and Adapter Harness (used with CSW24V CSL24V and CSL24VH only)
K001D8397-1

LiftMaster Power Board 3ph 575V L5

  • This is a 3PH/L5 Power Board 575V Replacement Kit. Compatible with various LiftMaster® 3 Phase Logic 5.0 Commercial Door Operators; equipped with current sense
K1D8388-1CC

LiftMaster Main Control Board Linear Actuators for UL325

  • This replacement board is compatible with the following models: LA500U LA400U LA412U
  • Same as 001D8388-1CC
  • Sticker on board references 001D9040-1CC
K1D8389-1CC

LiftMaster Main Board DC Pad Mount for UL325

  • This replacement board is compatible with the following models: CSW24U CSL24U RSW12U and RSL12U
  • Also compatible with HCTDCU and HCTDCUL Overhead Gate Operator
  • Same as 001D9039-1CC
K001D8395

LiftMaster Logic 5 Board Kit - all voltages L5

  • The K001D8395 is a 1 Phase and 3 Phase L5 logic board replacement kit.
  • This kit is compatible with LiftMaster® 3 Phase Commercial Door Operators manufactured after April 2016 only.
  • This L5 logic board is Current Sense compatible.
  • All 3 Phase operators made after April 2016 will require this board.
  • For 3 Phase operators that require the Current Sense Harness use part number K21-38158
Product bulletin
MA001

LiftMaster MA & MAT Control Board (K79-60166)

  • Electronic board for barrier gate operator
  • Same as K79-60166
  • Can be used in various Autogate Operators
K001A6424

LiftMaster Circuit Board Assembly Kit 2010 and later 315 MHz

  • UL325 Replacement circuit board for Medium-Duty Logic Commercial Operators
  • Used on models MJ MH MHS MT BMT and MGJ (UL325 compliant operators)
  • 315 MHz intergral radio receiver accepts 20 Sec+ remotes or unlimited dip switch
Installation Manual
K1D8387-1CC

LiftMaster Expansion Board UL325 for Gate Operators 2016+

  • K1D8387-1CC is a UL325 Expansion Board. For use with various LiftMaster® Commercial Swing and Slide Gate Operators; manufactured after 2016.
  • This expansion board accepts plug-in loop detectors (loopdetlm) external loop connection auxiliary relays and inputs for additional controls and entrapement protection.
  • This expansion board can be added to the LA400U & UL
  • Works with SL585U SL585UL SL595U SL595UL INSL24UL IHSL24UL HDSL24UL LA500U LA500UL CSL24U CSL24UL CSW24U CSW24UL SL3000U SL3000UL
BOARD065

Manaras Replacement Circuit Board (No Monitoring)

  • Replacement kit that includes BOARD060 (control board) & BOARD066R (power board)
  • For all Manaras operators built before October 2010
  • For newer models built after October 2010 use BOARD070 or replacement kit BOARD075
Installation ManualManuel d'installationReplacement ChartGuide de remplacement
BOARD070ER

Manaras Replacement Control Board (No Monitoring)

  • On-board 390MHz radio receiver accepts 50 remote controls
Replacement ChartGuide de remplacement
111854.0001

Overhead Logic Board for RSX 1/2 Hp 115/208/230V 1PH *** By quote only

  • Description: KITPCB1PH1/2HPSX/HXUL10
  • For RSX ad RHX models 1/2 Hp Single phase operators
Replacement Instructions
111883.0001

Overhead Logic Board for RMX

  • Replacement circuit board kit for the Overhead Door RMX commercial operator.
  • Replacement circuit board for the Overhead Door RMX commercial operator. UL 325 2010 compliant.
  • This circuit board replaces part #110955.0001
MK00488

Micanan Electronic Circuit Board Monitored

  • Replacement board for PRO-LH (50-11)
  • Board has terminals P1 & P2
  • Up to 20 transmitters can be programmed
Instructions Manual

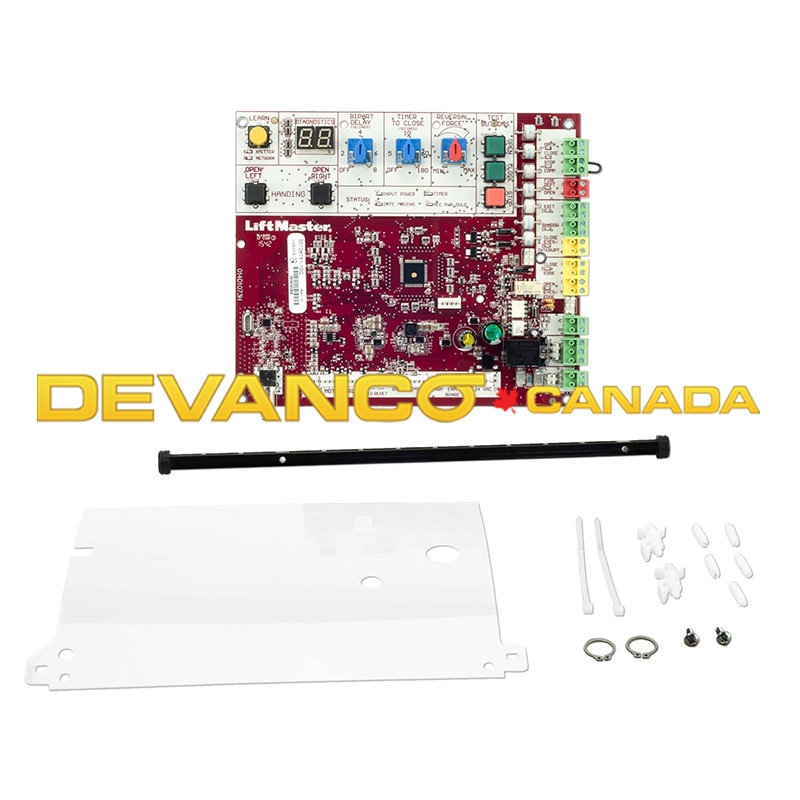

K1D6761-1CCMC

LiftMaster Logic Board AC for SL585U & UL SL595U & UL SL3000U & UL

  • K1D6761-1CCMC is a AC UL325 Logic Control Replacement Board. •For use with SL585 SL585 SL3000 Slide gate operators manufactured after 2016.
  • This board is backwards compatible for older second generation units but Monitored Photoelectric Sensor (LMRRUL) or Edge Sensor (LMWEKITU & S505AL) to protect the OPEN en entrapment zone are required.
  • Also known as: K1D9088-1CC K1D6761-1CC
K79-13493B-500

LiftMaster Logic Control Board Assembly (FDO FCC LMPLC 500V CHIP)

  • For use with various LiftMaster® Commercial Door Operator Models
