Home Commercial Door & Gate Operator Accessories Access Controls Misc Garage Door Dock & Gate
TM1-PLUS

Programmable Timer

  • 6 modes of operation : Delay on operate Delay on release Latching #1 Latching #2 Pulsing #1 Pulsing #2
  • Adjustable from 1 second to 4 hours with programmable dip switches LED status indicates when timer function is active
  • Microprocessor based / controlled clock for accuracy of 2%
  • Operates on a power supply of 12vdc or 24vdc
  • SPDT relay output : 5 amp 24vdc contacts
02-403N4-XALD

Push Button Control Station 3-Button Surface Mount NEMA 4/12 O/C/S Black Black Red

  • Open/Close/Stop allows complete control of the door.
  • Compatible with all commercial door operators.
  • NEMA 4 4X 12 13
  • Outdoor surface mount station with polycarbonate enclosure Part # XALD03H7
  • Dimensions: 2.0" x 5.27" x 2.68" (H x L x W)
02-403P

Push Button Control Station 3-Button Surface Mount NEMA 4/12 O/C/S Green Black Red

  • Open/Close/Stop allows complete control of the door.
  • Compatible with all commercial door operators.
  • NEMA 4 4X 12 13
  • Outdoor surface mount station with polycarbonate enclosure part # XALD03H7
Sell sheet
02-103

Push Button Station 3-btn Surface Mount Metal Housing

  • PBS-3
  • Open-Close-Stop
  • Momentary contact
  • Nema 1
  • Dimensions: 5-5/16" H x 2-3/8" W x 1-13/16" D
3BLM

Exterior Control Station 3 Button N4 with Mortise Lockout in Metal Enclose

  • Open-Close-Stop
  • Dimensions: 7" h x 2-3/4" w x 3-1/2" d
  • Exterior surface mount
3BLM
3BLM-BC

Exterior Control Station 3 Button N4 with Mortise Lockout in Metal Enclose and Best Cylinder

  • Open-Close-Stop
  • Dimensions: 7" h x 2-3/4" w x 3-1/2" d
  • Exterior surface mount
3BLM-BC
PED42

Pedestal Post 42" Gooseneck Pad Mount

  • Black powder coat finish
  • Faceplate with universal hole pattern to fit almost any access device
  • 2" x 2" square post
  • Neck is bent with 6 in. center radius giving a tight professional look
  • Same as G559
02-401

Push Button Control Station 1-Button Surface Mount NEMA 1

  • Die-cast metal enclosure
  • START may be used as OPEN with all LiftMaster operators.
  • May be used as OPEN and CLOSE on all operators with type B2 control wiring
6062

Programmable Timer *** To Extent of Inventory

  • 12VDC or 24VDC operation is selectable
  • Functions include: One shot Delayed release Delayed operate Delayed pulse and Pulse / Flasher.
  • Momentary relay activation at the end of a desired timing cycle eliminating the need for having to use 2 timers to achieve this function
  • LED indicates relay is energized
  • Form C relay contacts are 8 amp at 120VAC / 28VDC
Installation instructions
165-A

Fusible Link For Loads 1 to 30 lbs

  • Length is 2.625" width is .875"
  • Distance between centers is 1.75"
  • Priced per each
  • Fire rated at 165 degrees Fahrenheit
3EBX

Explosion Proof 3-Btn Pushbutton Control Station

  • Not rated for division or class
  • Three button O/C/S Nema-7/9
  • Surface mount
  • Dimensions: H=6-1/8" x W=3" x D=4-3/8"
NTE5326

Bridge Rectifier 25A 600V

  • Bridge Rectifier Converts AC to DC voltage
  • For powering DC accessories when AC transformer present
  • Small size with convenient mounting hole in center
  • Same as MCCM2506-RH
Characteristics

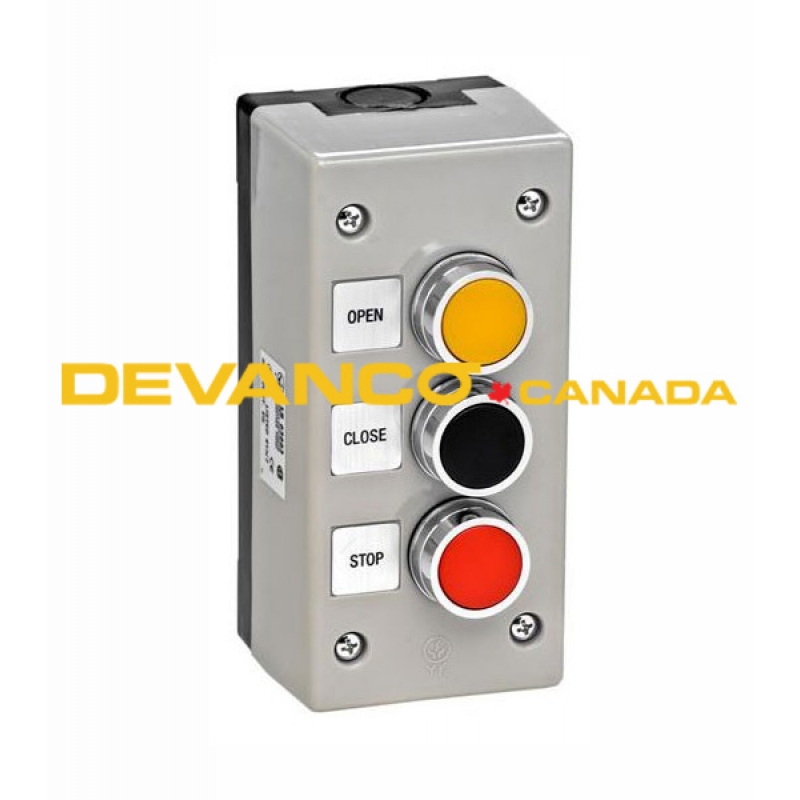

3BXT

Control Station Exterior Surface Mount O/C/S N4 Non-Metallic

  • Double pole contacts
  • H=5-3/4" W=2-3/4" D=2-1/2"
  • UL Listed CSA Approved
2BXT

Exterior 2-btn O/C Nema-4 Pushbutton Control Station Non-Metallic

  • Surface mount
  • Non-Metallic
  • Open / Close
IS-3

Interlock Switch for Rolling Steel Doors / Grills

  • Prevents the control of the operator when the door is locked.
  • The switch is a normally closed contact which is connected to the operator interlock terminal.
IS-2

Interlock Switch for Sectional Doors

  • Mounts on the door track to prevent the use of the operator when door is locked
  • Can be wired to a three button station
  • Demensions: 3" h x 3" w x 1-1/2" d
3BXLT

Control Station Exterior Surface Mount O/C/S N4 with Lockout Non-Metallic

  • Double pole contacts
  • Stations are randomly shipped with key numbers betwwen K001-K005 unless a specific key number is specified
  • Comes with 2 keys
  • H=7" W=2-3/4" D=2-3/4"
3BXT
165-B

Fusible Link For Loads 1 to 10 lbs

  • Length is 1.4328" width is .563"
  • Distance between center is .938"
  • Priced per each
  • Fire rated at 165 degrees Fahrenheit
3BXLT-KA

Control Station Exterior Surface Mount O/C/S N4 with Lockout Non-Metallic Keyed Alike

  • Double pole contacts
  • Stations are randomly shipped with key numbers betwwen K001-K005 unless a specific key number is specified
  • Comes with 2 keys keyed alike
  • H=7" W=2-3/4" D=2-3/4"
1KXS

Key Switch O/C w/Stop Btn Tamper Proof Nema 4 Surface Mount

  • OPEN-CLOSE with Center Return Key Switch with Stop Button Mortise Cylinder Tamperproof
  • Dimensions: H=4-3/8 W=4-1/8"" D=2-5/8""
  • Randomly keyed
