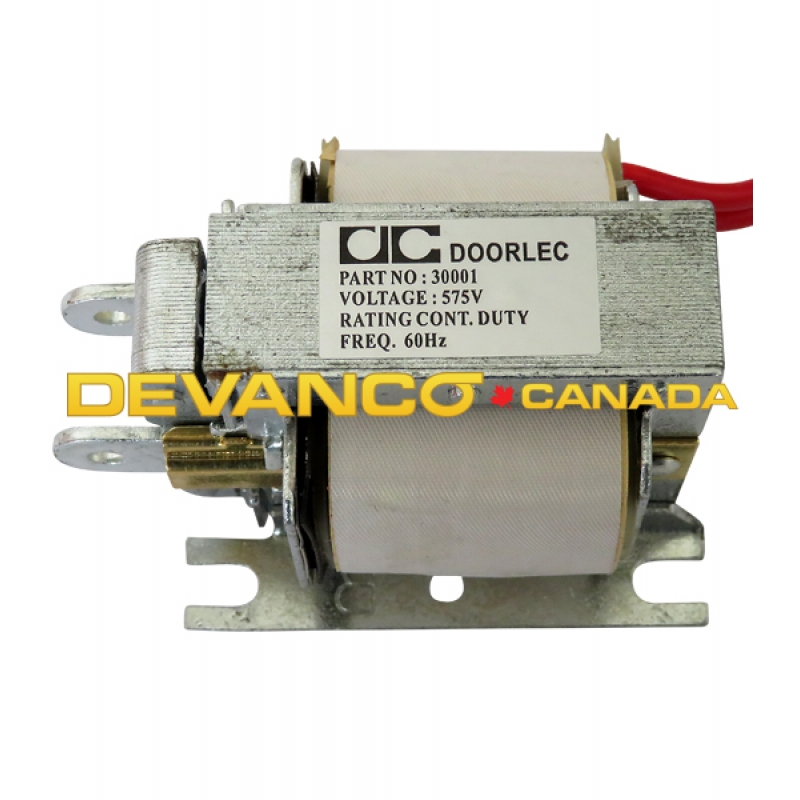

30001:Doorlec Brake Solenoid 575V with wire leads

LJH-353-1-RH

Doorlec 1 HP 575V 3PH Jackshaft Operator

Model LJH lasts an average of 10 million cycles
Available with ⅓ HP to 1 HP single-phase or three-phase motor and is equipped with self-adjusting solenoid brake
LJH installation is universal regardless of side (left or right)
Speed is approximately 1.4 feet per second or about 0.3 meters per second
Comes equipped with a manual chain hoist

50308

Doorlec Cam Shaft Assembly Comes With Bearings

Fits LJ LJH SGO

27120-575V

Doorlec Electric Motor 1/2HP 575V 3PH DC221

12118

Doorlec Commercial Aluminum Sliding Carriage

Works on Doorlec trolley operators

27209

Doorlec Electric Motor TEFC 3HP 208/480/575V 3-Phase DC333C

Frame size is 56C

31226

Doorlec Sprocket 41B48-1" shaft

36310

Doorlec Flicker Relay OFF/ON 120V AC

31114

Doorlec Sprocket 410B09 5/8" Bore 3/16" Keyway

9 tooth sprocket

26141-NEW

Doorlec Cam Shaft 11-1/4" x 5/8" (28.575 x 1.59cm)

Fits the new larger box

ETBH-311-3/4HP

Doorlec 3/4 HP 115V Trolley Door Opener with solenoid brake

Trolley model heavy-duty door operator designed to provide smooth dependable operation of sectional overhead type doors.

20102

Doorlec Reversing Spring

29140

Doorlec Transformer 230V pr 120V sec 50VA

230V primary 120V secondary 50VA

29201

Doorlec Transformer 460V pr 120V sec 35VA

460V prImary 120V secondary 35VA

LJH-353-1/2

Doorlec 1/2 HP 575V 3PH Jackshaft Operator

Heavy duty industrial type control station open close stop 24V. control circuit
Universal mounting right or left
Floor level disconnect device electrical and mechanical
Emergency chain hoist operation on LJH model only
Colour code wiring diagrams
Rotary type limit switches readily adjustable in both directions
Self adjusting solenoid brake
Friction safety clutch
Motor removable without disturbing limit adjustment or chain hoist operation
Heavy duty RC-41 roller chain drive throughout
All three phase motors totally enclosed fan cool
Overload and under voltage protection

22019

Doorlec Push Button Contact Block N/O

GUSSET-MOUNT

Doorlec Gusset Mount Plate Up-Charge (L Bracket) GH

Mounting plate for GH op

GHW-383-1HP-RH

Doorlec Industrial Gear Head Door Operator 1 HP 208V 3P with ECB and Nema4 modification

Extra heavy-duty industrial-type electric door operator for damp environments.
Worm gear reducer 40:1 ratio
#50 roller chain and sprockets from operator shaft to door shaft. (#60 chain optional)
Door speed: 7 inches per second (approx.)
Adjustable torque limiter (also called friction clutch)
Rotary type limit switches
3-Btn control (N4). momentary-contact type for Open Close Stop
Solenoid disk brake solenoid inside waterproof control box
Sideroom required: 24 inch minimum
Maximum Door weight: 6800 LBS

GHX-353-1.5HP-R

Doorlec Explosion Proof Gear Head 1-1/2 HP 575V 3PH ECB Right Hand

Nema 7/9 control box
Electrical connections from motor to control box consists of hazardous location certified fittings
NEMA 7/9 O/C/S push-button station included

GHX-353-1HP-RH

Doorlec Explosion Proof Gear Head 1 HP 575V 3PH ECB Right Hand

Nema 7/9 control box
Electrical connections from motor to control box consists of hazardous location certified fittings
NEMA 7/9 O/C/S push-button station included

50018

Doorlec Photo Switch Polarized Explosion Proof Reflective w/Round Reflector

Class 1 Div 1 Groupes CDEFG explosion proof Certified CSA

31373-114

Doorlec Sprocket 60B36 1-1/4" Bore

31369-114

Doorlec Sprocket 60B12 1-1/4" Bore

31111-114

Doorlec Sprocket 50B70 1-14" Bore KW/SS

GHW-353-3HP-RH

Doorlec Ind. Duty Jackshaft Carwash Op. 3 HP 575V 3P Right Hand *** By Quote Only

With DC2000 logic board
Worm-Gear Jackshaft type Industrial operator NEMA 4/12

LDJ-CAP-48MFD

Doorlec Run Capacitor for LDJ RCR50-370

370VAC/B 50 uf 50/60 Hz
CSC run capacitor

50695

Doorlec Clutch & Pulley Assembly for EHJX

Includes shaft and bearings

EHJX-353-1

Doorlec Industrial Jackshaft Op. Explosion Proof 1 HP 575V-3Ph ** Price on Request

Explosion proof NEMA 7/9 Heavy-Duty Industrial Operator
DC-2000 logic with adjustable Timer To Close Delay On Reverse.
Solenoid Brake prevents coasting and secures the door when closed
Explosion-proof (sealed) continuous-duty electric motor with overload protection
Automatic Friction Clutch protects the door and operator
Self-aligning Heavy Duty sealed Pillow Block bearings on all shafts for high cycle applications
#50 drive chain 5L350 v-belt
Universal design allows installation of operator on either side of the door
Floor Level Disconnect and Manual Chain hoist in case of power failure
Operating speed approx 8-10" per second
Includes 1" chain spreader Part # 50535
Inlcudes explosion-proof open/stop/close wall control
2 year Warranty

15470

Doorlec Heater Strip 250 W 120 V

15055

Doorlec Electronic Thermostat 330V B1 Metal

GHW-311-1.5HP-RH

Doorlec Ind. Duty Jackshaft Carwash Op. 1-1/2 HP 115V 1P with ECB

With DC2000 logic board
Worm-Gear Jackshaft type Industrial operator NEMA 4/12

MPB-3

Doorlec Open Mushroom Stop Lockable Close Push Button Station

Green (Open) Red (Mushroom Stop) Black (Close) push-button station

GH-353-3

Doorlec Industrial Gearhead Door Operator 3HP 575V 3-Phase

Extra Deavy-Duty Gearhead Industrial Operator or large Sectional or Rolling Steel Doors
DC-2000 Logic Board with adjustable Timer To Close Delay On Reverse and Traffic Light Control
Worm gear reducer 40:1 ratio for high-torque and long life
Solenoid Disk Brake Prevents coasting and secures the door when closed
TEFC (sealed) continuous-duty electric motor with overload protection
Optional Friction Clutch available
#50 roller chain from operator shaft to door shaft larger sizes available
Right or left installation (must be specified)
Floor Level Disconnect and Manual Chain Hoist in case of power failure
Operating speed 7 inches per second (approx.)
Includes 1" chain spreader part # 50535
2 year warranty
