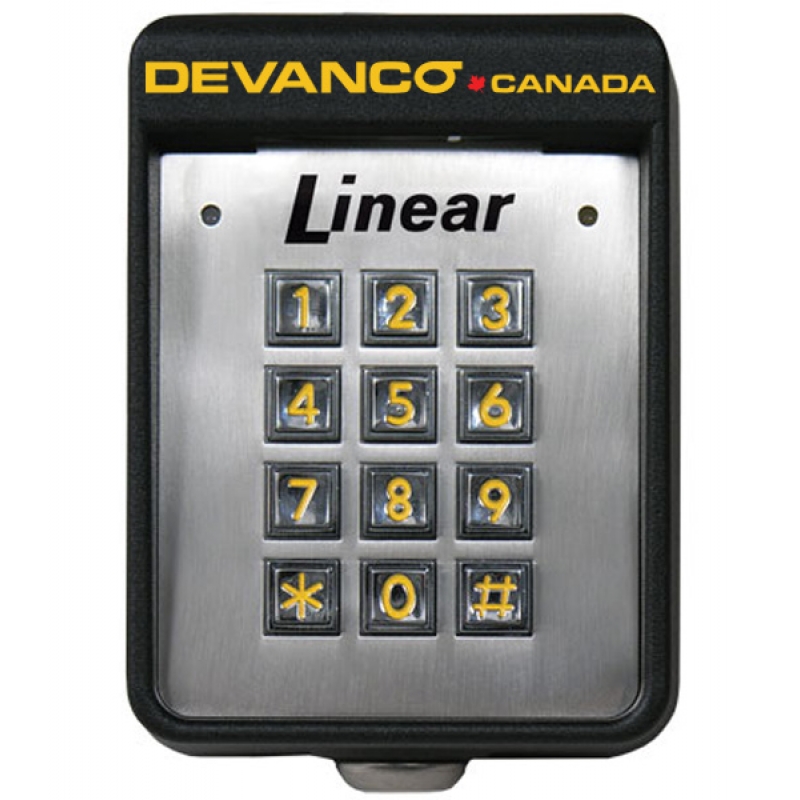

Linear Exterior Digital Keypad (ACP00748)
Item #: AK-11
Manufacturer: Linear Corp
List price: $345.00
Manuals & Brochures:
Programming Instructions,
Instructions de programmation,
DETAILS
- Self-contained keyless entry system ideal for airports hospitals warehouses office buildings parking lots and many other commercial facilities
- Rugged cast aluminum enclosure for indoor or outdoor mounting on a wall or pedestal
- Four independent outputs and timers: two form C relays and two solid-state open collector outputs with unique programming per entry code
- Up to 480 programmable input codes of one to six digits each for activating either or both relays
- Two LED indicators show system status
- Key operating features include: door sense input; inhibit input; request-to-exit input; alarm shunt output; timed anti-passback; and keypad lockout
- Programmable courtesy light illuminates keypad for 1 2 3 or 4 minutes or always on
- Tactile and audible feedback
- Keylock secures keypad to mounting backplate
- 4" W x 5.5" H x 3" D
Order number: ACP00748
DETAILS
- Self-contained keyless entry system ideal for airports hospitals warehouses office buildings parking lots and many other commercial facilities
- Rugged cast aluminum enclosure for indoor or outdoor mounting on a wall or pedestal
- Four independent outputs and timers: two form C relays and two solid-state open collector outputs with unique programming per entry code
- Up to 480 programmable input codes of one to six digits each for activating either or both relays
- Two LED indicators show system status
- Key operating features include: door sense input; inhibit input; request-to-exit input; alarm shunt output; timed anti-passback; and keypad lockout
- Programmable courtesy light illuminates keypad for 1 2 3 or 4 minutes or always on
- Tactile and audible feedback
- Keylock secures keypad to mounting backplate
- 4" W x 5.5" H x 3" D Order number: ACP00748
