DETAILS

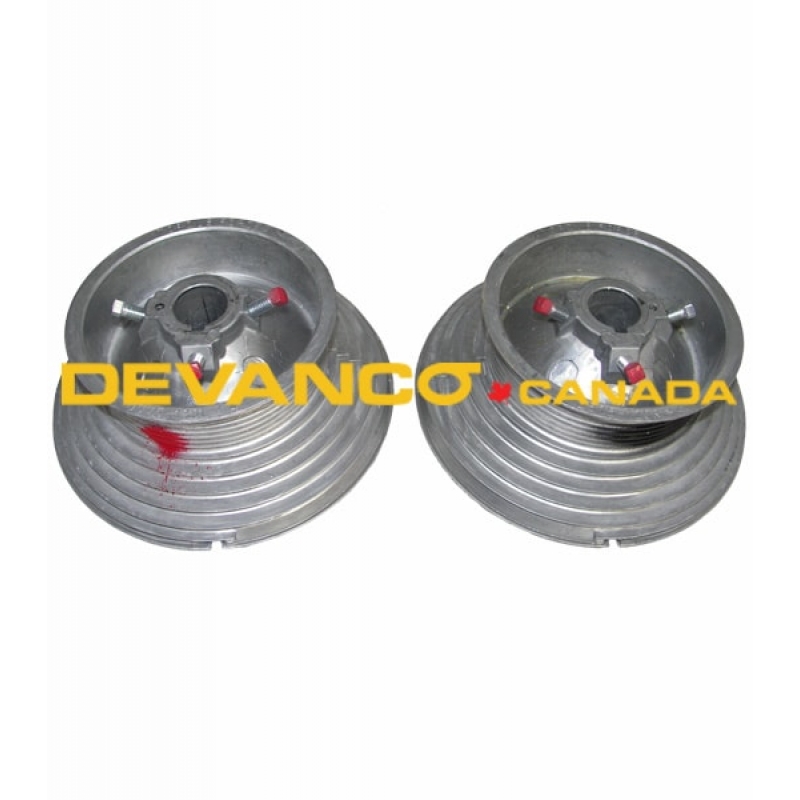

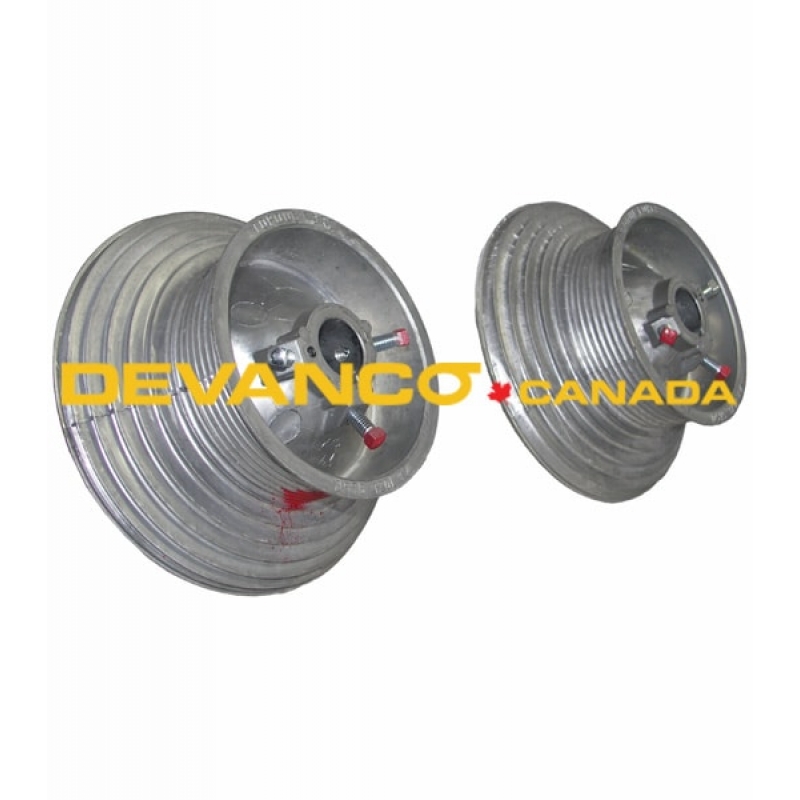

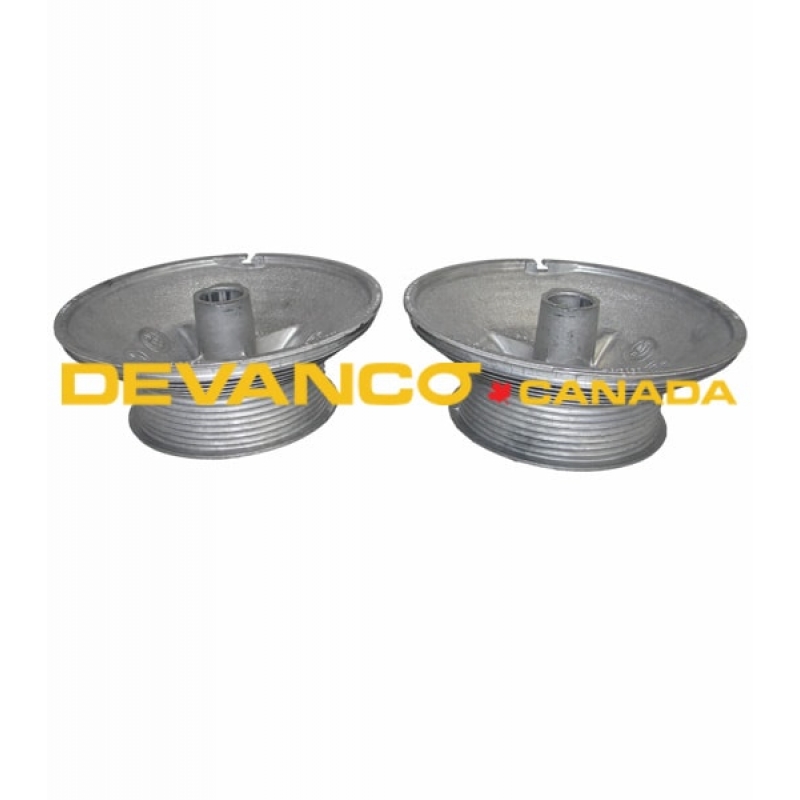

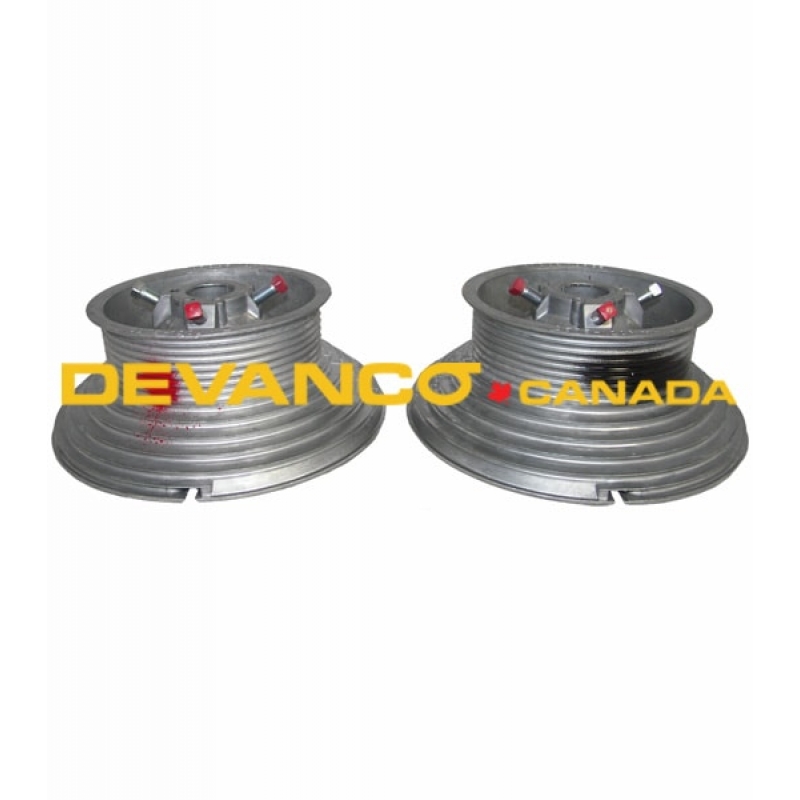

• 120" High Lift aluminum die cast alloy cable drums.
• 3/8"-16 x 2" hardened cup point set screws installed with red heads.
• Pair includes: (1) LH and (1) RH. Color coded: Red=LH and Black=RH.
• Maximum high lift: 120".
• Maximum door height: 144" + High Lift.
• Rated lift per drum: 500 lbs.
• Maximum cable diameter: 3/16".
• Mounting: 1-1/4" solid shaft with 1/4" keyway.
• Cross Reference: D575-120HL-125 DNS 120-125 OMI 2700-125 5750-120-125
