DETAILS

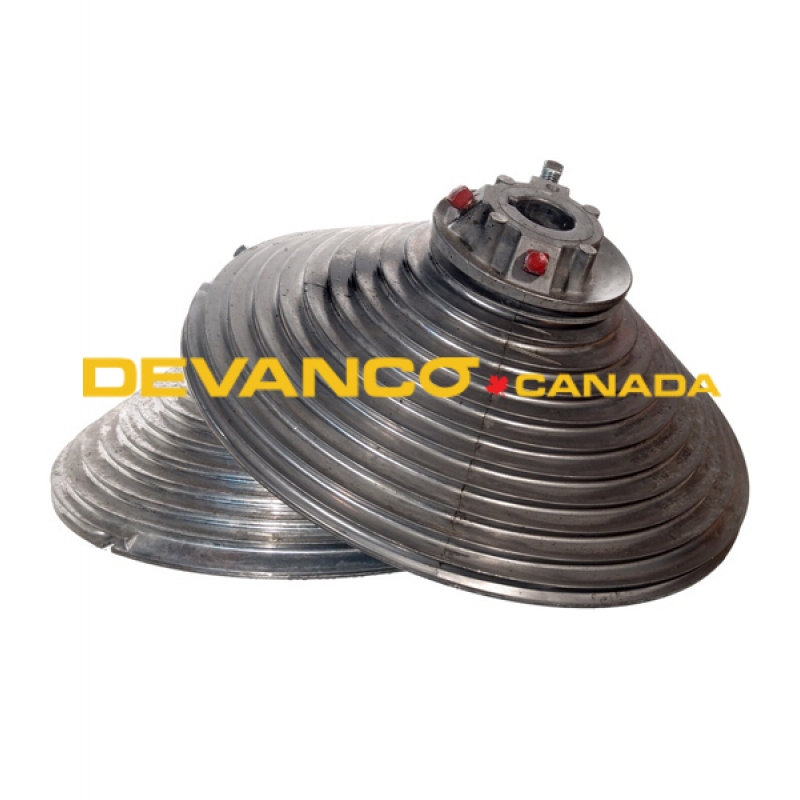

• 18' Vertical Lift aluminum die cast alloy cable drums for 1-1/4" shaft.
• 3/8"-16 x2" hardened cup point set screws installed with red heads.
• Color coded: Red=LH and Black=RH. Pair includes (1) LH and (1) RH.
• Max. Door Height: 18'-1".
• Rated Lift per Drum: 660 lbs.
• Max. Cable Diameter: 3/16".
• Mounting: 1-1/4" solid shaft with 1/4" keyway.
• Cross Reference: D1100-216VL-125 DNS 236-18-125 OMI 2902-125
