DETAILS

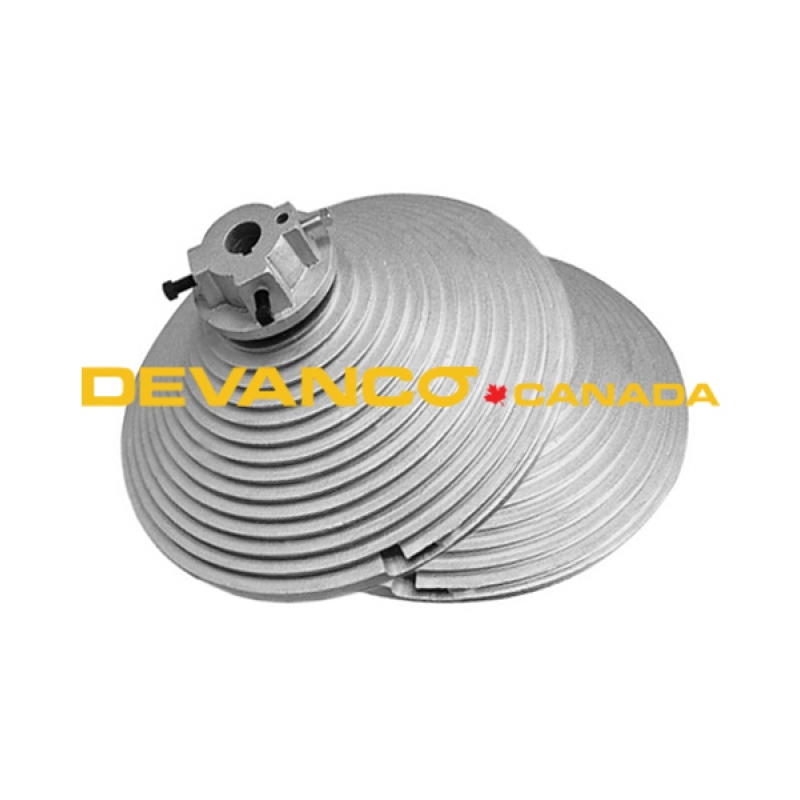

• 28' Vertical Lift aluminum die cast alloy for 1-1/4" shaft.
• 3/8"-16 x2" hardened cup point set screws installed with red heads. -
• Color coded: Red=LH and Black=RH. Pair includes (1) LH and (1) RH.
• Max. Door Height: 28'-1".
• Rated Lift per Drum: 1100 lbs.
• Max. Cable Diameter: 1/4".
• Mounting: 1-1/4" solid shaft with 1/4" keyway.
• Cross Reference: D1350-336VL-125 OMI 2906-125
