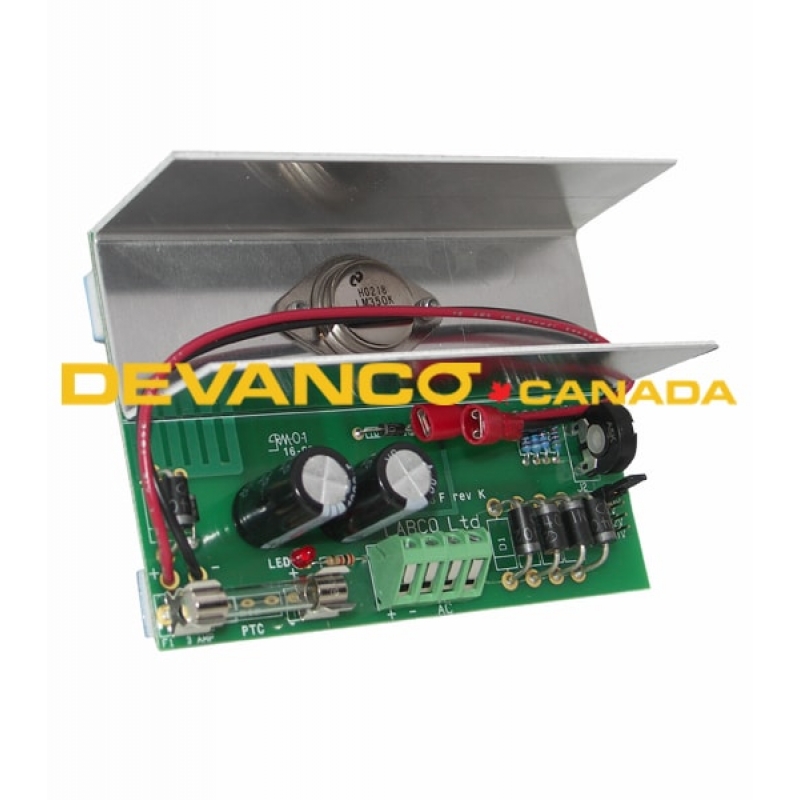

Adjustable DC Power Supply 6V/12/24V 3 AMP
Item #: PS243F
Manufacturer: Misc Garage Door Dock & Gate
List price: $60.00
Manuals & Brochures:
Wiring Diagram / Diagramme de raccordement,
Specifications / Spécifications,
DETAILS
- 3 preset output voltages : 6/12 and 24VDC (an adjustable mode is also available with a jumper setting)
- Full adjustment from 2 to 24VDC if required
- Maximum 3 amp (Output at 70 deg. F and free air)
- Regulation:97.5%
- Maximum input voltage 36 volts
- Fuse protected
- Built-in gel cell battery charger
- Automatic switch over to standby battery in case of AC power failure
- Battery leads (10"254mm) complete with quick connectors
- Ease of installation with supplied adhesive mounting tape
